NEW QUESTION 31
Which Protocol Data Unit (PDU) represents the data link layer PDU?

PDU1 – Signal

PDU2 – Frame

PDU3 – Packet

PDU4 – Segment

NEW QUESTION 32

Based on the given topology, what is the requirement on an Aruba switch to enable LLDP messages to be received by Switch 1 port 1/1/24. when Router 1 is enabled with LLDP?

LLDP is enabled by default

global configuration lldp enable

int 1/1/24, lldp receive

int 1/1/24, no cdp

NEW QUESTION 33
The noise floor measures 000000001 milliwatts, and the receiver’s signal strength is -65dBm. What is the Signal to Noise Ratio?

35 dBm

15 dBm

45 dBm

25 dBm

NEW QUESTION 34
What does the status of “ALFOE” mean when checking LACP with “show lacp interfaces'”?

The interface on the local switch is configured as static-LAG

LACP is not configured on the peer side

LACP is in a synchronizing process

LACP is working fine with no problems

Explanation
The status of “ALFOE” means that LACP Link Aggregation Control Protocol (LACP) is a network protocol that provides dynamic negotiation of link aggregation between two devices. LACP allows multiple physical links to be combined into a single logical link for increased bandwidth, redundancy, and load balancing. LACP is defined in IEEE 802.3ad standard. is working fine with no problems when checking LACP with “show lacp interfaces”. The status of “ALFOE” is an acronym that stands for:
A: Active – The interface is actively sending LACP packets to negotiate link aggregation with the peer device.
L: Link Up – The interface has physical connectivity with the peer device.
F: Aggregatable – The interface can be aggregated with other interfaces into a single logical link.
D: Synchronized – The interface has successfully negotiated link aggregation parameters with the peer device and can transmit or receive traffic on the logical link.
E: Collecting/Distributing – The interface is collecting incoming traffic from the peer device and distributing outgoing traffic to the peer device on the logical link.
The other options are not correct because:
The interface on the local switch is configured as static-LAG: This option is false because static-LAG does not use LACP to negotiate link aggregation. Static-LAG requires manual configuration of link aggregation parameters on both devices and does not have any status indicators.
LACP is not configured on the peer side: This option is false because if LACP is not configured on the peer side, the status of the interface would be “ALF-” instead of “ALFOE”. This means that the interface would not be synchronized or collecting/distributing with the peer device.
LACP is in a synchronizing process: This option is false because if LACP is in a synchronizing process, the status of the interface would be “ALF-O” instead of “ALFOE”. This means that the interface would not be collecting/distributing with the peer device.
References:
https://www.arubanetworks.com/techdocs/AOS-CX_10_08/NOSCG/Content/cx-noscg/lag/lag-overview.htm
https://www.arubanetworks.com/techdocs/AOS-CX_10_08/NOSCG/Content/cx-noscg/lag/lag-lacp.htm
https://www.arubanetworks.com/techdocs/AOS-CX_10_08/NOSCG/Content/cx-noscg/lag/lag-lacp-status.htm

NEW QUESTION 35
Which commands are used to set a default route to 10.4.5.1 on an Aruba CX switch when ln-band management using an SVl is being used?

iP default-gateway 10.4.5.1

ip route 0 0 0.070 10.4 5.1 vrf mgmt

ip route 0.0 0 0/0 10.4.5.1

default-gateway 10.4.5.1

NEW QUESTION 36
What is the correct command to add a static route to a class-c-network 10.2.10.0 via a gateway of 172.16.1.1?

ip-route 10.2.10.0/24 172.16.1.1

ip route 10.2.10.0.255.255.255.0 172.16.1.1 description aruba

ip route 10.2.10.0/24.172.16.11

ip route-static 10.2 10.0.255.255.255.0 172.16.1.1

NEW QUESTION 37
When performing live firmware upgrades on Aruba APs. which technology partitions all the APs based on RF neighborhood data minimizing the impact on clients?

Aruba ClientMatch

Aruba Ai insights

Aruba AirMatch

Aruba ESP

NEW QUESTION 38
You are configuring a network with a stacked pair of 6300M switches used for distribution and layer 3 services. You create a new VLAN for users that will be used on multiple access stacks of CX6200 switches connected downstream of the distribution stack You will be creating multiple VLANs/subnets similar to this will be utilized in multiple access stacks What is the correct way to configure the routable interface for the subnet to be associated with this VLAN?

Create a physically routed interface in the subnet on the 6300M stack for each downstream switch.

Create an SVl in the subnet on each downstream switch

Create an SVl in the subnet on the 6300M stack, and assign the management address of each downstream switch stack to a different IP address in the same subnet

Create an SVl in the subnet on the 6300M stack.

Explanation
The correct way to configure the routable interface for the subnet to be associated with this VLAN is to create an SVI Switched Virtual Interface (SVI) Switched Virtual Interface (SVI) is a virtual interface on a switch that represents a VLAN and provides Layer 3 routing functions for that VLAN . SVIs are used to enable inter-VLAN routing , provide gateway addresses for hosts in VLANs , apply ACLs or QoS policies to VLANs
, etc . SVIs have some advantages over physical routed interfaces such as saving interface ports , reducing cable costs , simplifying network design , etc . SVIs are usually numbered according to their VLAN IDs (e.g., vlan 10) and assigned IP addresses within the subnet of their VLANs . SVIs can be created and configured by using commands such as interface vlan , ip address , no shutdown , etc . SVIs can be verified by using commands such as show ip interface brief , show vlan , show ip route , etc . in the subnet on the 6300M stack.
An SVI is a virtual interface on a switch that represents a VLAN and provides Layer 3 routing functions for that VLAN. Creating an SVI in the subnet on the 6300M stack allows the switch to act as a gateway for the users in that VLAN and enable inter-VLAN routing between different subnets. Creating an SVI in the subnet on the 6300M stack also simplifies network design and management by reducing the number of physical interfaces and cables required for routing.
The other options are not correct ways to configure the routable interface for the subnet to be associated with this VLAN because:
Create a physically routed interface in the subnet on the 6300M stack for each downstream switch: This option is incorrect because creating a physically routedinterface in the subnet on the 6300M stack for each downstream switch would require using one physical port and cable per downstream switch, which would consume interface resources and increase cable costs. Creating a physically routed interface in the subnet on the 6300M stack for each downstream switch would also complicate network design and management by requiring separate routing configurations and policies for each interface.
Create an SVl in the subnet on each downstream switch: This option is incorrect because creating an SVI in the subnet on each downstream switch would not enable inter-VLAN routing between different subnets, as each downstream switch would act as a gateway for its own VLAN only. Creating an SVI in the subnet on each downstream switch would also create duplicate IP addresses in the same subnet, which would cause IP conflicts and routing errors.
Create an SVl in the subnet on the 6300M stack, and assign the management address of each downstream switch stack to a different IP address in the same subnet: This option is incorrect because creating an SVI in the subnet on the 6300M stack, and assigning the management address of each downstream switch stack to a different IP address in the same subnet would not enable inter-VLAN routing between different subnets, as each downstream switch would still act as a gateway for its own VLAN only. Creating an SVI in the subnet on the 6300M stack, and assigning the management address of each downstream switch stack to a different IP address in the same subnet would also create unnecessary IP addresses in the same subnet, which would waste IP space and complicate network management.
References: https://www.arubanetworks.com/techdocs/AOS-CX/10.05/HTML/5200-7295/index.html
https://www.arubanetworks.com/techdocs/AOS-CX/10.05/HTML/5200-7295/cx-noscg/l3-routing/l3-routing-ove
https://www.arubanetworks.com/techdocs/AOS-CX/10.05/HTML/5200-7295/cx-noscg/l3-routing/l3-routing-con

NEW QUESTION 39

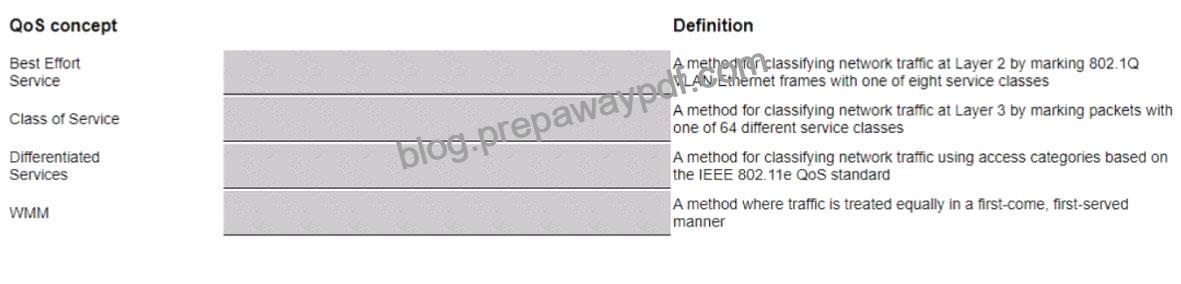

Match the appropriate QoS concept with its definition.

Explanation
QoS Quality of Service (QoS) is a set of techniques that manage network resources and provide different levels of service to different types of traffic based on their requirements. QoS can improve network performance, reduce latency, increase throughput, and prevent congestion. concept and its definition. Here is my answer:
QoS Concept:
Best Effort Service
Class of Service
Differentiated Services
WMM ====================== Definition:
d) A method where traffic is treated equally in a first-come, first-served manner a) A method for classifying network traffic at Layer 2 by marking 802.1Q VLAN Ethernet frames with one of eight service classes b) A method for classifying network traffic at Layer 3 by marking packets with one of 64 different service classes c) A method for classifying network traffic using access categories based on the IEEE 802.11e QoS standard Short But Comprehensive Explanation of Correct Answer Only: The correct match between QoS concept and its definition is as follows:
Best Effort Service: This is a method where traffic is treated equally in a first-come, first-served manner without any prioritization or differentiation. This is the default service level for most networks and applications that do not have specific QoS requirements or guarantees. Best Effort Service does not provide any assurance of bandwidth, delay, jitter, or packet loss.
Class of Service: This is a method for classifying network traffic at Layer 2 by marking 802.1Q VLAN Ethernet frames with one of eight service classes (0 to 7). These service classes are also known as IEEE
802.1p priority values or PCP Priority Code Point (PCP) is a 3-bit field in the 802.1Q VLAN tag that indicates the priority level of an Ethernet frame . Class of Service allows network devices to identify and handle different types of traffic based on their priority levels. Class of Service is typically used in LAN Local Area Network (LAN) is a network that connects devices within a limited geographic area, such as a home, office, or building environments where Layer 2 switching is predominant.
Differentiated Services: This is a method for classifying network traffic at Layer 3 by marking packets with one of 64 different service classes (0 to 63). These service classes are also known as DiffServ Code Points (DSCP) DiffServ Code Point (DSCP) is a 6-bit field in the IP header that indicates the service class of a packet . Differentiated Services allows network devices to identify and handle different types of traffic based on their service classes. Differentiated Services is typically used in WAN Wide Area Network (WAN) is a network that connects devices across a large geographic area, such as a country or continent environments where Layer 3 routing is predominant.
WMM: This is a method for classifying network traffic using access categories based on the IEEE
802.11e QoS standard. WMM stands for Wi-Fi Multimedia and it is a certification program developed by the Wi-Fi Alliance to enhance QoS for wireless networks. WMM defines four access categories (AC): Voice, Video, Best Effort, and Background. These access categories correspond to different priority levels and contention parameters for wireless traffic. WMM allows wireless devices to identify and handle different types of traffic based on their access categories.
References: https://en.wikipedia.org/wiki/Quality_of_service
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/qos_dfsrv/configuration/xe-16/qos-dfsrv-xe-16-book/qos-dfsr
https://www.cisco.com/c/en/us/support/docs/wireless-mobility/wireless-lan-wlan/81831-qos-wlan.html
https://www.wi-fi.org/discover-wi-fi/wi-fi-certified-wmm

NEW QUESTION 40
Based on the “snow ip route” output on an AruDaCX 8400. what type of route is “10.1 20 0/24, vrf default via
10.1.12.2. [1/0]”?

local

static

OSPF

connected

NEW QUESTION 41
Match the feature to the Aruba OS version (Matches may be used more than once.)

Explanation
Features: 1) Clustered Instant Access Points Aruba OS version: a) Aruba OS 8 Features: 2) Dynamic Radius Proxy Aruba OS version: a) Aruba OS 8 Features: 3) Scales to more than 10,000 devices Aruba OS version: b) Aruba OS 10 Features: 4) Unifies wired and wireless management Aruba OS version: a) Aruba OS 8 Features: 5) Wireless controllers Aruba OS version: a) Aruba OS 8 ArubaOS is the operating system for all Aruba Mobility Controllers (MCs) and controller-managed wireless access points (APs). ArubaOS 8 delivers unified wired and wireless access, seamless roaming, enterprise grade security, and a highly available network with the required reliability to support high density environments1.
Some of the features of ArubaOS 8 are:
Clustered Instant Access Points: This feature allows multiple Instant APs to form a cluster and share configuration and state information. This enables seamless roaming, load balancing, and fast failover for clients2.
Dynamic Radius Proxy: This feature allows an MC to act as a proxy for RADIUS authentication requests from clients or APs. This simplifies the configuration and management of RADIUS servers and reduces the network traffic between MCs and RADIUS servers3.
Wireless controllers: Aruba wireless controllers are devices that centrally manage and control the wireless network. They provide functions such as AP provisioning, configuration, security, policy enforcement, and network optimization.
ArubaOS 10 is the next-generation operating system that works with Aruba Central, a cloud-based network management platform. ArubaOS 10 delivers greater scalability, security, and AI-powered optimization across large campuses, branches, and remote work environments. Some of the features of ArubaOS 10 are:
Scales to more than 10,000 devices: ArubaOS 10 can support up to 10,000 devices per cluster, which is ten times more than ArubaOS 8. This enables customers to scale their networks without compromising performance or reliability.
Unifies wired and wireless management: ArubaOS 10 provides a single platform for managing both wired and wireless devices across the network. Customers can use Aruba Central to configure, monitor, troubleshoot, and update their devices from anywhere.
Both ArubaOS 8 and ArubaOS 10 share some common features, such as:
Unifies wired and wireless management: Both operating systems provide unified wired and wireless access for customers who use Aruba switches and APs. Customers can use a single interface to manage their entire network infrastructure
https://www.arubanetworks.com/resource/arubaos-8-fundamental-guide/ 2
https://www.arubanetworks.com/techdocs/Instant_86_WebHelp/Content/instant-ug/iap-maintenance/clust
3
https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/1-overview
https://www.arubanetworks.com/products/networking/controllers/
https://www.arubanetworks.com/products/network-management-operations/arubaos/
https://blogs.arubanetworks.com/solutions/making-the-switch/
https://www.arubanetworks.com/products/network-management-operations/aruba-central/

NEW QUESTION 42
A network technician is troubleshooting one new AP at a branch office that will not receive Its configuration from Aruba Central The other APs at the branch are working as expected The output of the ‘show ap debug cloud-server command’ shows that the “cloud conflg received” Is FALSE.
After confirming the new AP has internet access, what would you check next?

Disable and enable activate to trigger provisioning refresh

Verify the AP can ping the device on arubanetworks.com

Verify the AP has a license assigned

Disable and enable Aruba Central to trigger configuration refresh

NEW QUESTION 43
After having configured the edge switch uplink as requested your colleague says that they have failed to ping the core You ask your colleague to verify the connection is plugged in and the switch is powered on They confirm that both are correct You attempt to ping the core switch and confirm that the ping is failing.
Knowing the nature of this deployment, what commands might you use to troubleshoot this issued

Ping 10.11 1 – ping the core to attempt to verify connectivity Show trunk – to verify if the LAG interface was correctly added to the switch Show spanning tree – to check for spanning-tree blocked states Show port-access clients interface all – to view any port-access blocking states or failed authentication attempts on all interfaces Show run interface vlan20 – to double check the layer 3 svi configuration is correct for l_3 connectivity Show lldp neighors – to verify whether you are able to see the Core as an L2 neighbor to verify if the correct links are plugged in to the correct ports

diagnostic diag cable-diag 1/1/51 diag cable-diag 1/1/52 – to view diagnostic information for the physical link to get a status on any interruptions to Layer 1 connectivity, show ip route – to verify that the default gateway is present in the routing table show ip ospf – to check whether there is a layer 3 routing protocol enabled show ip dns – to view whether there is a valid dns source

Ping 10.1.1.1 – ping the core to attempt to verify connectivity show lacp agg – to verify which link aggregations are currently configured using which physical ports show lacp int – to verify the LACP status and whether any links are blocking in your topology show lldp neighors – to verify whether you are able to see the Core as an L2 neighbor to verify if the correct links are plugged in to the correct ports show run interface 1/1/51.1/1/52-to ensure the physical interfaces are no-shut and members of the lag show run interface lag 1 – to ensure the correct vlan trunking configuration is applied to the logical interface show run int vlan 20 – to ensure you have the L3 SVI no shut and configured in the correct subnet

Show run – to view the running configuration of the switch Show run | begin 20 “vlan 20” – to ensure VLAN 20 was correctly added to the database show run | begin 20 ‘interface vlan 20’ – to view the L3 SVI configuration Show run interface 1/1/51.1/1/52 – to ensure the physical interfaces are no shut and were added as members of LAG 1 Show run int lag 1 – to verify LACP mode active was configured to eliminate LACP blocking states

NEW QUESTION 44
What is the ideal Aruba access switch for a cost-effective connection to 200-380 clients, printers and APs per distribution rack?

Aruba CX 6400

Aruba CX 6200

Aruba CX 6300

Aruba CX 6000

Explanation
The ideal Aruba access switch for a cost-effective connection to 200-380 clients, printers and APs per distribution rack is the Aruba CX 6200. This switch series is a cloud-manageable, stackable access switch series that is ideal for enterprise branch offices and campus networks, as well as SMBs. The CX 6200 series offers the following benefits:
Enterprise-class connectivity: The CX 6200 series supports ACLs, robust QoS, and common protocols such as static and Access OSPF routing.
Power and speed for users and IoT: The CX 6200 series provides built-in 1/10GbE uplinks and 30W to
60W of Class 4 to Class 6 PoE for powering devices such as APs and cameras.
Scalable growth made simple: The CX 6200 series supports Aruba Virtual Switching Framework (VSF) that allows you to quickly grow your network to eight members in a single stack using high-performance built-in 10G SFP ports.
Management flexibility: The CX 6200 series supports a choice of management, including cloud-based and on-prem Central, CLI, switch Web GUI and programmability with AOS-CX operating system, and REST APIs.
The other options are not ideal because:
Aruba CX 6400: This switch series is a high-availability modular switch series that is ideal for versatile edge access to data center deployments. It offers more performance, scalability, and modularity than the CX 6200 series, but it is also more expensive and complex to deploy and manage. It may not be cost-effective for connecting 200-380 clients per distribution rack.
Aruba CX 6300: This switch series is a layer 3 stackable access and aggregation switch series that offers Smart Rate and High Power PoE. It offers more features and performance than the CX 6200 series, but it is also more expensive and may not be necessary for connecting 200-380 clients per distribution rack.
Aruba CX 6000: This switch series is a layer 2 access switch series that offers PoE. It offers less features and performance than the CX 6200 series, and it does not support VSF stacking or routing protocols. It may not be sufficient for connecting 200-380 clients per distribution rack.
References: https://www.arubanetworks.com/products/switches/access/
https://www.arubanetworks.com/products/switches/access/6200-series/
https://www.arubanetworks.com/products/switches/access/6400-series/
https://www.arubanetworks.com/products/switches/access/6300-series/
https://www.arubanetworks.com/products/switches/access/6000-series/

NEW QUESTION 45
Which statement is correct when comparing 5 GHz and 6 GHz channels with identical channel widths?

5 GHz channels travel the same distances and provide different throughputs to clients compared to 6 GHz channels

5 GHz channels travel different distances and provide different throughputs to clients compared to 6 GHz channels

5 GHz channels travel the same distances and provide the same throughputs to clients compared to 6 GHz channels

5 GHz channels travel different distances and provide the same throughputs to clients compared to 6 GHz channels

Explanation
The correct statement when comparing 5 GHz and 6 GHz channels with identical channel widths is that 5 GHz channels travel different distances and provide different throughputs to clients compared to 6 GHz channels.
This statement reflects the fact that higher frequency signals tend to have higher attenuation Attenuation is a general term that refers to any reduction in signal strength during transmission over distance or through an object or medium . Higher attenuation means that higher frequency signals have shorter range and lower throughput than lower frequency signals. Some facts about this statement are:
5 GHz channels have lower frequency than 6 GHz channels, which means they have lower attenuation than 6 GHz channels.
Lower attenuation means that 5 GHz channels can travel longer distances and provide higher throughputs to clients than 6 GHz channels with identical channel widths.
However, the difference in distance and throughput between 5 GHz and 6 GHz channels may not be significant in indoor environments where there are many obstacles and reflections that affect signal propagation.
The advantage of using 6 GHz channels over 5 GHz channels is that they offer more spectrum availability, less interference, and more non-overlapping channels than 5 GHz channels.
The other options are not correct because:
5 GHz channels travel the same distances and provide different throughputs to clients compared to 6 GHz channels: This option is false because 5 GHz channels do not travel the same distances as 6 GHz channels due to higher attenuation of higher frequency signals.
5 GHz channels travel the same distances and provide the same throughputs to clients compared to 6 GHz channels: This option is false because 5 GHz channels do not travel the same distances or provide the same throughputs as 6 GHz channels due to higher attenuation of higher frequency signals.
5 GHz channels travel different distances and provide the same throughputs to clients compared to 6 GHz channels: This option is false because 5 GHz channels do not provide the same throughputs as
6 GHz channels due to higher attenuation of higher frequency signals.
References: https://www.wi-fi.org/discover-wi-fi/wi-fi-certified-6e
https://www.wi-fi.org/file/wi-fi-alliance-spectrum-needs-study
https://www.cisco.com/c/en/us/support/docs/wireless-mobility/wireless-lan-wlan/82068-power-levels.html
https://www.cisco.com/c/en/us/products/collateral/wireless/spectrum-expert-wi-fi/prod_white_paper0900aecd80

NEW QUESTION 46
What can be done to dynamically set the PoE Priority on a switch port when deploying IP cameras APs. and other PoE devices?

Enable Quick PoE on the switch modules

Enable profiling for device provisioning

Configure PoE power management to Class-based Mode

Configure PoE power management to Dynamic Mode

NEW QUESTION 47
What are the main characteristics of the 6 GHz band?

Less RF signal is absorb by objects in a 6 GHz WLAN.

In North America, the 6 GHz band offers more 80 MHz channels than there are 40 MHz channels in the
5 GHz band.

The 6 GHz band is fully backward compatible with the existing bands.

Low Power Devices are allowed for indoor and outdoor usage.

Explanation
The main characteristic of the 6 GHz band that is true among the given options is that in North America, the 6 GHz band offers more 80 MHz channels than there are 40 MHz channels in the 5 GHz band. This characteristic provides more spectrum availability, less interference, and higher throughput for wireless devices that support Wi-Fi 6E Wi-Fi Enhanced (Wi-Fi 6E) is an extension of Wi-Fi 6 (802.11ax) standard that operates in the newly available unlicensed frequency spectrum around 6 GHz in addition to existing bands below it. Some facts about this characteristic are:
In North America, there are up to seven non-overlapping channels available in each of three channel widths (20 MHz, 40 MHz, and 80 MHz) in the entire unlicensed portion of the new spectrum (5925-7125 MHz). This means there are up to 21 non-overlapping channels available for Wi-Fi devices in total.
In comparison, in North America, there are only nine non-overlapping channels available in each of two channel widths (20 MHz and 40 MHz) in the entire unlicensed portion of the existing spectrum below it (2400-2483 MHz and 5150-5825 MHz). This means there are only up to nine non-overlapping channels available for Wi-Fi devices in total.
Therefore, in North America, there are more than twice as many non-overlapping channels available in each channel width in the new spectrum than in the existing spectrum below it.
Specifically, there are more than twice as many non-overlapping channels available at 80 MHz width (seven) than at 40 MHz width (three) in the existing spectrum below it.
The other options are not true because:
Less RF signal is absorbed by objects in a 6 GHz WLAN: This option is false because higher frequency signals tend to be more absorbed by objects than lower frequency signals due to higher attenuation Attenuation is a general term that refers to any reduction in signal strength during transmission over distance or through an object or medium . Therefore, RF signals in a 6 GHz WLAN would be more absorbed by objects than RF signals in a lower frequency WLAN.
The 6 GHz band is fully backward compatible with existing bands: This option is false because Wi-Fi devices need to support Wi-Fi 6E standard to operate in the new spectrum around 6 GHz . Existing Wi-Fi devices that do not support Wi-Fi 6Estandard cannot use this spectrum and can only operate in existing bands below it.
Low Power Devices are allowed for indoor and outdoor usage: This option is false because Low Power Indoor Devices (LPI) are only allowed for indoor usage under certain power limits and registration requirements . Outdoor usage of LPI devices is prohibited by regulatory authorities such as FCC Federal Communications Commission (FCC) is an independent agency of United States government that regulates communications by radio, television, wire, satellite, and cable across United States . However, outdoor usage of Very Low Power Devices (VLP) may be allowed under certain power limits and without registration requirements.
References: https://www.wi-fi.org/discover-wi-fi/wi-fi-certified-6e
https://www.wi-fi.org/file/wi-fi-alliance-spectrum-needs-study
https://www.cisco.com/c/en/us/products/collateral/wireless/spectrum-expert-wi-fi/prod_white_paper0900aecd80
https://www.cisco.com/c/en/us/support/docs/wireless-mobility/wireless-lan-wlan/82068-power-levels.html
https://www.wi-fi.org/file/wi-fi-alliance-unlicensed-spectrum-in-the-us

NEW QUESTION 48
You have been asked to onboard a new Aruba 6300M in a customer deployment You are working remotely rather than on-site You have a colleague installing the switch The colleague has provided you with a remote console session to configure the edge switch You have been asked to configure a link aggregation going back to the cores using interfaces 1/1/51 and 1/1/52 The Senior Engineer of the project has asked you to configure the switch and 1Q uplink with these guidelines
1. Add VLAN 20 to the local VLAN database with name Mgmt
2. Add L3 SVl on VLAN 20 for Management using address 10 in the 10.1.1 0/24 subnet 3. Add LAG 1 using LACP mode active for the uplink
4 use vlan 20 as the native vlan on the LAG 5. Make sure the interfaces are all ON.
Which configuration script will achieve the task?

Edge1# conf t vlan 20 name Mgmt interface vlan 20 ip address 10.1.1.10/24 no shut interface lag 1 shut vlan access 20 lacp mode active Int 1/1/51.1/1/52 shut no routing lag 1 interface lag 1 no shut

Edgel# conf t vlan 20 name Mgmt interface vlan 20 ip address 10 1.1 10/24 no shut interface
1/1/51.1/1/52 shut vlan trunk native 20 vlan trunk allowed all lag 1 lacp mode active interface 1/1/51.1/1/52 no shut

Edgel# conf t vlan 20 name Mgmt interface vlan 20 ip address 10 1 1 10/24 no shut interface lag 1 shut vlan trunk native 20 vlan trunk allowed all lacp mode active Int 1/1/51.1/1/52 shut no routing lag 1 interface lag 1 no shut interface 1/1/51.1/1/52 no shut

conf t vlan 20 name Mgmt ip address 10 1 1.10/24 no shut interface lag 1 shut vlan trunk native 1 vlan trunk allowed all lacp mode active int 1/1/51.1/1/52 shut no routing interface lag 1 no shut interface
1/1/51.1/1/52 no shut

NEW QUESTION 49
A hospital uses a lot of mobile equipment for the diagnosis and documentation of patient data What Is the ideal access switch for this large hospital with distribution racks of over 400 ports in a single VSF stack?

CX 6300

OCX 6400

OCX 6200

OCX 6100

Explanation
The ideal access switch for a large hospital with distribution racks of over 400 ports in a single VSF stack is the CX 6300. This switch provides the following benefits:
The CX 6300 supports up to 48 ports per switch and up to 10 switches per VSF stack, allowing for a total of 480 ports in a single stack. This meets the requirement of having over 400 ports in a single VSF stack.
The CX 6300 supports high-performance switching with up to 960 Gbps of switching capacity and up to
714 Mpps of forwarding rate. This meets therequirement of having high throughput and low latency for mobile equipment and patient data.
The CX 6300 supports advanced features such as dynamic segmentation, policy-based routing, and role-based access control. These features enhance the security and flexibility of the network by applying different policies and roles to different types of devices and users.
The CX 6300 supports Aruba NetEdit, a network configuration and orchestration tool that simplifies the management and automation of the network. This reduces the complexity and human errors involved in network configuration and maintenance.
The other options are not ideal because:
OCX 6400: This switch is designed for data center applications and does not support VSF stacking. It also does not support dynamic segmentation or policy-based routing, which are useful for network security and flexibility.
OCX 6200: This switch is designed for small to medium-sized businesses and does not support VSF stacking. It also has lower switching capacity and forwarding rate than the CX 6300, which may affect the performance of the network.
OCX 6100: This switch is designed for edge applications and does not support VSF stacking. It also has lower switching capacity and forwarding rate than the CX 6300, which may affect the performance of the network.
References: https://www.arubanetworks.com/assets/ds/DS_CX6300Series.pdf
https://www.arubanetworks.com/assets/ds/DS_OC6400Series.pdf
https://www.arubanetworks.com/assets/ds/DS_OC6200Series.pdf
https://www.arubanetworks.com/assets/ds/DS_OC6100Series.pdf

The Best HPE6-A85 Exam Study Material Premium Files and Preparation Tool (Aug-2023) [Q31-Q49]

admin

Leave a Reply Cancel reply

Related posts:

admin

You might also like

Leave a Reply Cancel reply
